Small Format Ordering Kiosks
MetroClick’s compact self-service terminals maximize ordering efficiency in space-constrained environments, featuring 24″ and 27″ touchscreen displays with integrated payment processing, receipt printing, and barcode scanning for quick-service restaurants, cafes, and retail locations.
Trusted by industry leaders to power better customer experiences

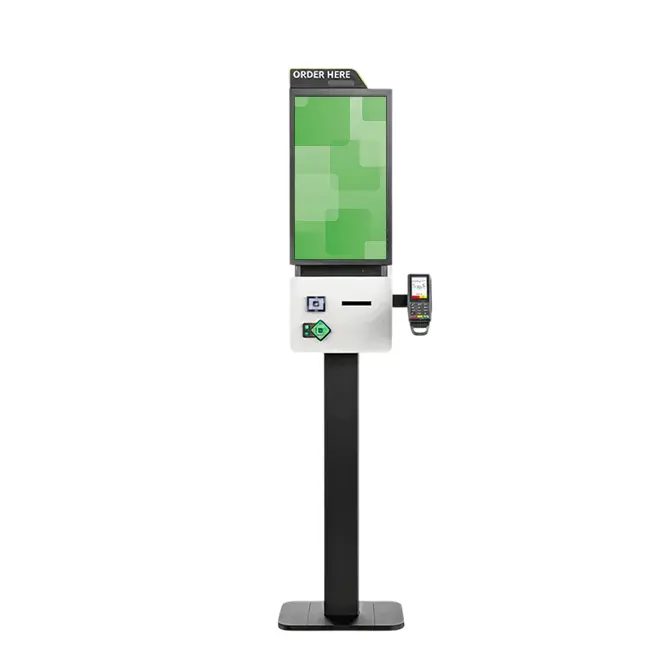

24" Self-Ordering Kiosk
Cost-efficient food service terminal specialized for restaurant ordering. Ideal for quick-service and fast-casual establishments requiring streamlined food and beverage ordering with integrated payment processing and receipt printing in a compact design.
Technical Specifications:
- Display: 24″ Full HD (1920×1080), 1000 cd/m², anti-glare surface treatment
- Processor: Intel Core i5-7300U, Intel HD Graphics 620, 8GB DDR4 memory
- Dimensions: 21.8×13.0×72.2 inches, steel and aluminum construction
- Power: 100-240V AC/DC switching, 24V working power, max 700W consumption
- Features: Zebra barcode scanner, thermal printer, multiple payment module options
- Environment: -15°C to +40°C operating, IP54 ingress protection
- Connectivity: 2×Gigabit Ethernet, USB-C 3.1, multiple USB and serial ports
27" Self-Ordering & Ticketing Kiosk
Versatile dual-purpose terminal for both food ordering and ticket sales. Perfect for entertainment venues, quick-service restaurants, and facilities requiring both ordering and ticketing capabilities during peak hours, featuring dual-display options and comprehensive transaction processing.
Technical Specifications:
- Display: 27″ (685.65mm) Full HD (1920×1080), 300 cd/m², projected capacitive touch (10 touches)
- Processor: Intel Core i5-6500T Skylake 4C/4T 2.5 GHz, 8GB DDR4 memory
- Dimensions: 420×2252×488mm, steel powder coated construction
- Power: 100-240V AC, 60W idle/100W load consumption
- Features: Honeywell barcode scanner, Verifone payment terminal, Epson thermal printer
- Environment: 10°C-35°C operating, 20%-90% humidity range
- Mounting: Pedestal design, single or dual display configurations
Discover the versatility built into each product
Built for Every Environment
Trust in ruggedized, rated, reliable and robust devices of all shapes and sizes that perform flawlessly indoors or out.
Engage and Inform
Guide users through effortless, self-driven, interactive experiences or stream advertisements and promotions 24/7 on optically bonded, enhanced viewing touch screens.
Modular in Design
Easily configure, connect and scale devices to suit different locations, functions and use cases, while streamlining maintenance, serviceability and operational expenses.
Unapologetically Authentic
Fit any space with aesthetics and branding that drives emotional resonance and authentic connections to your true brand.
Other hardware options
Small Format Kiosks
Large Format Kiosks
Immersive Kiosks
More Information
Compact Self-Service Solutions for Space-Constrained Venues
Small-format ordering kiosks revolutionize how businesses maximize limited floor space while delivering comprehensive self-service capabilities. These compact terminals, typically featuring 24” to 27” displays, provide all the functionality of larger systems within footprints as small as 18 square inches. MetroClick’s space-efficient designs enable quick-service restaurants, coffee shops, and retail locations to implement automated ordering without sacrificing valuable customer or operational space.
The engineering behind small-format kiosks prioritizes vertical integration, stacking components within slender profiles that fit seamlessly into existing layouts. Despite their compact dimensions, these systems accommodate full-featured payment processing, receipt printing, and barcode scanning capabilities. Advanced cable management and component miniaturization ensure reliable operation while maintaining the clean aesthetic crucial for customer-facing installations.
Counter-Height Integration for Seamless Operations
Small-format kiosks excel when integrated at counter height, creating natural interaction points that complement existing service workflows. Positioning these units at standard counter levels (36-42 inches) allows customers to place orders while maintaining visual connection with staff members who can assist when needed. This hybrid approach bridges fully automated service with personal interaction, particularly valuable during the adoption phase.
Countertop mounting options eliminate floor space requirements, making small-format kiosks ideal for food trucks, kiosk stands, and temporary locations. Weighted bases and secure mounting brackets ensure stability during high-volume periods while allowing repositioning as operational needs evolve. The compact profile also facilitates dual-unit installations, enabling businesses to handle peak traffic without expanding their physical footprint.
Display Optimization for Compact Screens
Designing effective user interfaces for 24-27” displays requires thoughtful consideration of touch target sizes, menu hierarchy, and visual flow. MetroClick’s digital signage software optimizes every pixel to ensure intuitive navigation despite reduced screen real estate. Larger fonts, strategic use of scrolling, and progressive disclosure techniques guide users through ordering processes without overwhelming the compact display.
High-resolution screens (1920×1080 minimum) ensure text remains crisp and images appear appetizing even at smaller sizes. Brightness levels optimized for indoor environments (500-700 nits) provide excellent visibility without excessive power consumption. Anti-glare coatings reduce reflections from overhead lighting, maintaining readability from various viewing angles typical in cramped spaces.
Queue Management for Tight Spaces
Small-format kiosks transform queue dynamics in space-constrained environments by enabling order placement away from primary service counters. Coffee shops position compact kiosks near entrances, allowing customers to order while others collect completed items. This spatial separation reduces perceived congestion and improves traffic flow within limited square footage.
Strategic placement of multiple small-format units creates distributed ordering zones that prevent bottlenecks during rush periods. Unlike single large-format payment kiosks that create convergence points, arrays of compact units allow natural spacing between customers. Digital signage integration above each unit can display order status, further distributing customers throughout the available space.
Technical Specifications for Reliability
Small-format kiosks utilize industrial-grade components specifically selected for reliability in compact enclosures. Solid-state drives eliminate moving parts susceptible to vibration damage in high-traffic environments. Fanless processors reduce noise while preventing dust accumulation that could compromise performance in food service settings. These design choices ensure consistent operation despite the thermal challenges of compact form factors.
Network connectivity in small venues often presents challenges due to limited infrastructure or architectural constraints. Small-format kiosks support multiple connectivity options, including WiFi, cellular, and powerline networking. This flexibility enables deployment in food courts, mall kiosks, or historic buildings where running new cables proves impractical or prohibited.
Cost-Benefit Analysis for Small Venues
Small-format ordering kiosks require significantly lower capital investment compared to full-sized alternatives. Reduced material costs, simpler installation requirements, and lower shipping expenses make self-service kiosks accessible to independent operators and small chains. The compact size also reduces ongoing costs, including maintenance, replacement parts, and insurance premiums.
Despite their smaller size, compact ordering kiosks deliver substantial operational improvements that accelerate return on investment. Labor optimization remains the primary benefit, with a single employee managing multiple kiosk-equipped stations. Order accuracy improvements reduce waste and remake costs, particularly impactful for businesses operating on thin margins. Transaction speed increases of 30-40% are typical when customers use well-designed small-format kiosks versus traditional counter ordering.
Future-Proofing Small Format Deployments
Emerging technologies continue to enhance small-format kiosk capabilities without increasing physical dimensions. Voice ordering integration allows hands-free operation in even tighter spaces. Interactive displays with projection mapping could extend screen size beyond physical boundaries. The modular architecture of compact kiosks ensures compatibility with future payment technologies and customer engagement features.
MetroClick designs small-format ordering kiosks with adaptability in mind, accommodating hospitality venues, corporate cafeterias, and evolving retail concepts. These space-efficient solutions prove that powerful self-service technology doesn’t require extensive floor space, making automation accessible to businesses of all sizes.
