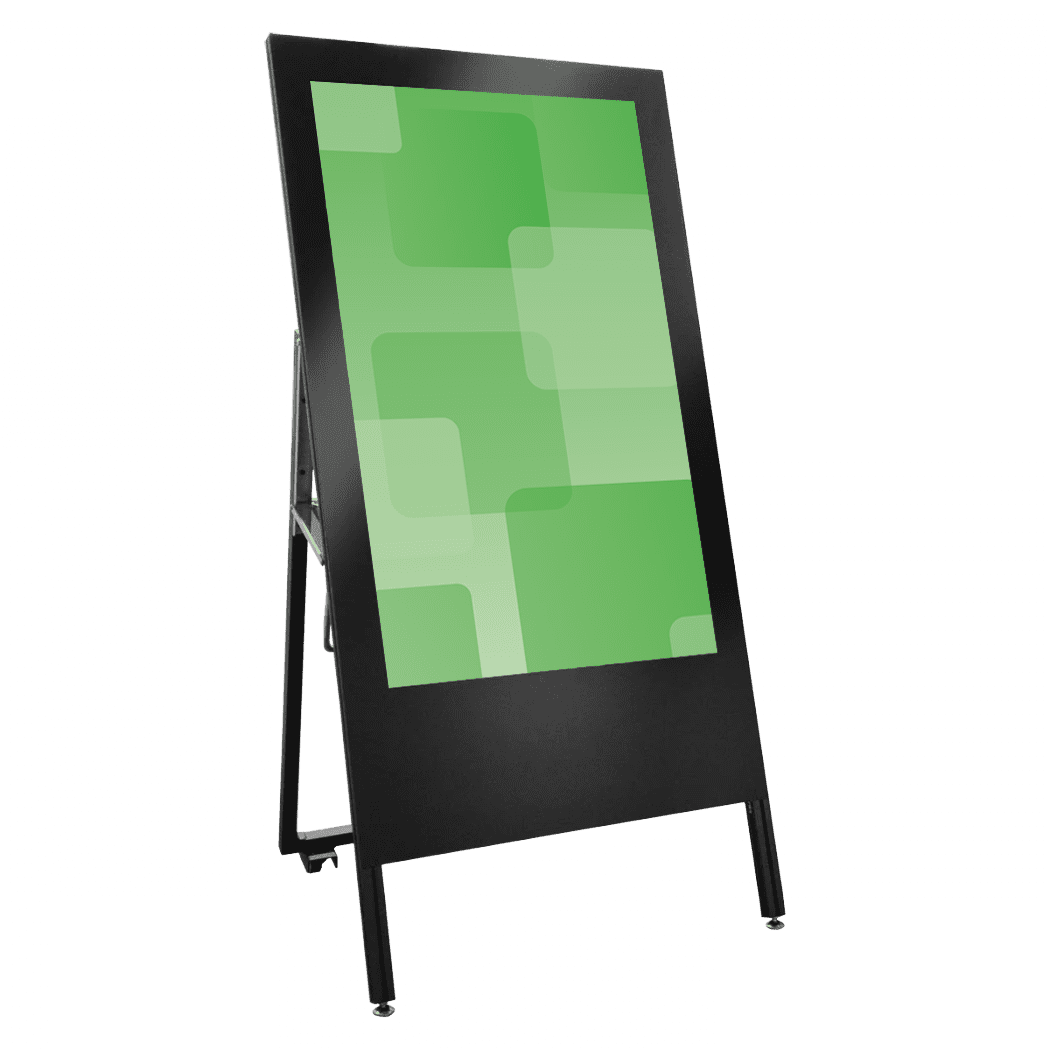

A Frame Kiosks
- A-Frame Design
- Battery Powered
- Short-Term or Permanent Installation
- Anti-Microbial / Anti-Virus Coating
- Full HD Industrial LCD-panel with backlight LED A+ quality
- Capacitive 10-finger multitouch monitor

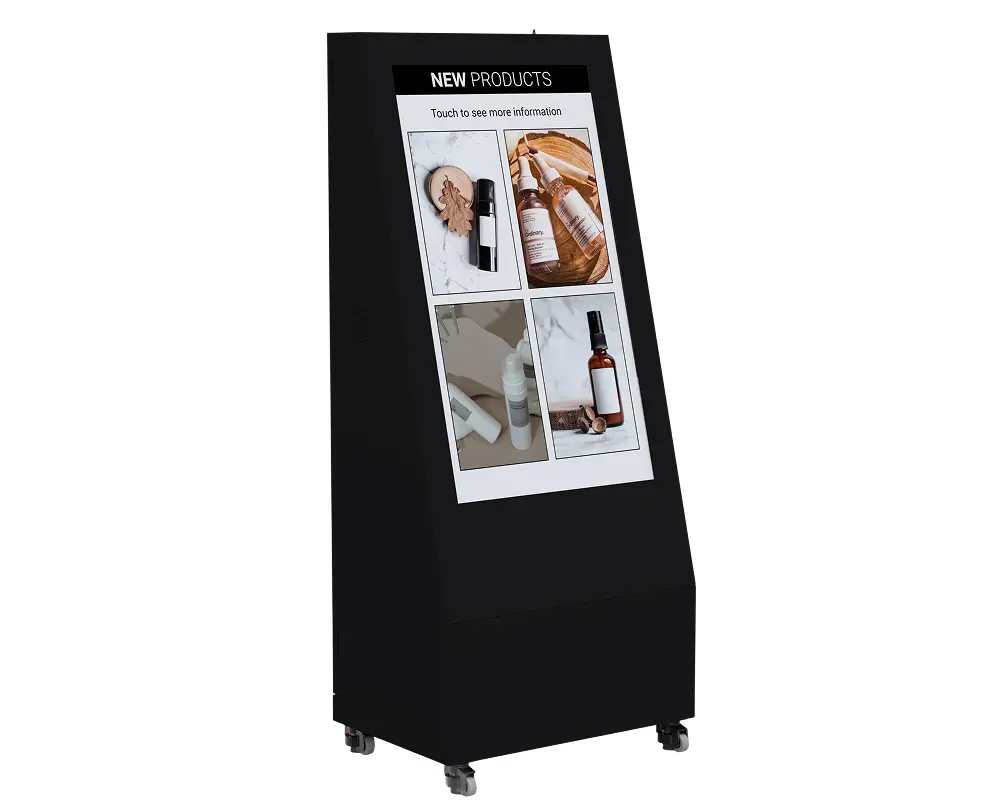

Product name: 43”A-Frame Kiosk
IP Rated Front Panel: IP40
Screen diagonal (Inch/cm): 43/106.73
Display active screen size: 93.02x52.33
Aspect ratio: 16:9
Physical resolution: 1920x1080
Maximum showable resolution (TPCs: external): 1920x1200
Colours displayed: 16.7M
Brightness (cd/m2): 360
Typical reaction time Tr/ Tf (ms): 6/8
Visual Angle horizontal/vertical (°): 178/178
Backlight / Backlight Lifetime (hours): LED / 50,000
Touch Technology: Projected Capacitive 10-point Multitouch
Touch Connector: USB
Touch Panel Drivers: Windows; Linux; Mac; Android
Touch Life (Contacts): Unlimited
Surface Hardness: 7H
Operating Temperature (°C): -10 ~ +60
Humidity Range (RH): 10%-90%
Net weight (kg): 60
Gross weight (kg): 103
Housing material: Aluminum
Power Indicator: Green LED
Power Supply: 100-240V ACDC active switching; 24V DC-Out
Working Power (V): 24
Power Consumption (W): 90
Stand-By Consumption (W): <0.5
1x SO-DIMM Slot, max. 8GB, DDR3L-1333 Single channel memory
1x 12V DC power connector (2-pin); 1x 4-pin SATA power connector
2x S-ATA 3GB/s ports; 1x 5-pin LCD power connector
1x VGA pin header; 1x SIM-card-Header (connected to MiniPCIe); 1x LVDS connector
1x S/PDIF output pin header
1x Line-Out / Mic-In audio pin header
1x 4-pin (2x2W) audio amplifier connector
1x PS/2 keyboard/mouse connector (6-pin)
1x USB 2.0 header supports additional 4x USB 2.0 ports
3x RS232/RS485 COM connectors, switchable between RS232/RS485 in BIOS
1x 8-bit Digital I/O interface
1x Chassis Fan connector
1x Display port
1x USB 3.0, 3x USB 2.0 ports
1x COM port Full-PIN (RS232/485; 5V/12V)
2x 10/100/1000Mbit RJ45 Ports
1x 24V DC-In
1x 2.5” module slot, changeable SSD included
2x Mini Card slots with PCIe and USB interface (2x Full Height/Half height changeable)
1x PCIeX1 Straddle connector
Power Supply (see Power section)
Short Installation Manual
Explore The Possibilities With MetroClick’s A-Frame IP65 Touchscreen Kiosk Technology
MetroClick’s Large Format Multi-Touch PC Kiosks are manufactured featuring full HD industrial 24/7 LCD panels for constant use with energy-saving LED backlight technology. All models come with 10 finger multitouch capacitive Touch Panels and have a slim, extraordinary stylish appearance. Each kiosk has an extra wide viewing angle and is equipped with faytech´s industrial fay-002 mainboard series with its powerful but energy efficient QuadCore Celeron processor.
MetroClick´s industrial grade 64GByte SSD with preinstalled Linux Operation System (for Windows 7 to 10 drivers are available), W-Lan and many PC ports behind a lockable cover provides a complete and secure solution which can be installed and used immediately.
A-Frame Kiosks: Captivate Your Audience and Elevate Your Brand
Whether it be kiosks, flat panel displays, display boards, digital signage or interactive monitors – indoors, outdoors or a combination of both, MetroClick has the ability to tailor our software and hardware to meet your needs.
From retail stores to shopping malls, MetroClick has a place in your property to subtly but effectively make an impact.
This digital kiosk adapts the older look and style of a sandwich board and integrates the latest digital capabilities LCD technology. This system is ready for both indoor and outdoor environments, with high bright display and IP67 Outdoor-rated casing.
The digital kiosk is available in both touchscreen and static display formats to ensure that you have both the flexibility of a low-cost solution and ability to engage your customers more directly.
Kiosks are an influential instrument for engaging your target audience, showcasing real-time images, videos, maps, schedules, shopping cart integration, customer support solutions, and more.
Explore MetroClick’s A-Frame Kiosks for Superior Customer Engagement
Kiosks not only amplify customer engagement but also enhance sales and your brand’s image. Furthermore, they offer an economical advertising solution for your business.
MetroClick presents a broad selection of kiosks, including touchscreen displays and static signage options, with customization to accommodate your distinct needs.
Our displays can highlight your business’s primary advantages, featuring upcoming events, special promotions, or products available at your kiosk.
Digital signage provides adaptability for both indoor and outdoor settings, while its high visibility makes it perfect for hard-to-reach locations.
Kiosks can be tailored to your specific needs, whether it’s adjusting the signboard size or adding a bench.
Key Features of MetroClick’s A-Frame Kiosk Hardware
Kiosks are a viable way to increase the convenience and efficiency of transactions, providing information or advertising. Not only will they boost sales, attract customers, and improve the success of your business, but they can also be utilized for promoting new products or services.
MetroClick provides a selection of kiosks suitable for many different uses. Their sleek and contemporary designs can be tailored to meet your requirements.
Touch screen technology enables users to enter data with their fingertips or stylus apparatus. This type of input device is becoming increasingly popular with younger generations due to its more convenient and efficient nature.
These kiosks not only allow customers to place and pay for orders simultaneously, but also save time by enabling them to swiftly browse through the product inventory to find what they need.
By presenting customers with all product options before making a decision, kiosks help them choose the right item and prevent regrettable purchases.
The quality of the touchscreen is crucial to a kiosk’s success, as it must withstand heavy traffic and provide a seamless experience for users.
Touchscreen kiosks captivate customers with features such as adjustable text size, enhanced resolution, and adaptable brightness, making them a popular choice for businesses aiming to deliver a modern and high-quality experience to their clientele.
Another fantastic advantage of these kiosks is their adaptability to any space, no matter its dimensions. You can install them in restaurants, hotels, malls and more with ease.
A-Frame Kiosk Applications for Various Industries
Kiosks are a widely-used tool that many businesses rely on for their marketing and advertising initiatives. Not only do they increase sales, but their ROI also rises significantly – which makes them ideal for places such as airports, train stations, malls, restaurants – they’re also useful in delivering information and providing customer service.
The kiosk industry is rapidly growing and presents businesses of all sizes with an exciting array of possibilities. These devices provide customers with a digital space where they can interact with products and services that save them time, money, and stress.
Kiosks require software in order to deliver their services. This software dictates the aesthetic, usability and functional logic of a kiosk. It can be tailored specifically for each business’ requirements.
MetroClick’s A-Frame Kiosk Support and Maintenance
With MetroClick’s Kiosks, longevity and hassle-free operations are ensured through our comprehensive maintenance plan. Proper care and the right tools keep your kiosk looking its best, attracting customers to your store or office.
Our industry-leading support and service programs have you covered from start to finish. At MetroClick, our attentive customer service representatives are always ready to answer your questions or help you choose the perfect solution for your needs.
Our team of kiosk experts is committed to making sure your business operates seamlessly for years to come. With MetroClick’s kiosks, you can rely on unparalleled support throughout the installation process and beyond.
Have questions? Interested in a quote or RFP? Contact us today and one of our specialists will follow up ASAP!
