LANDSCAPE
TOUCH SCREEN KIOSKS

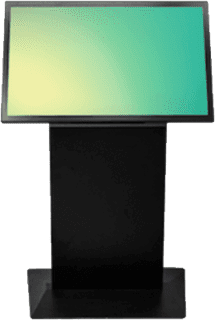

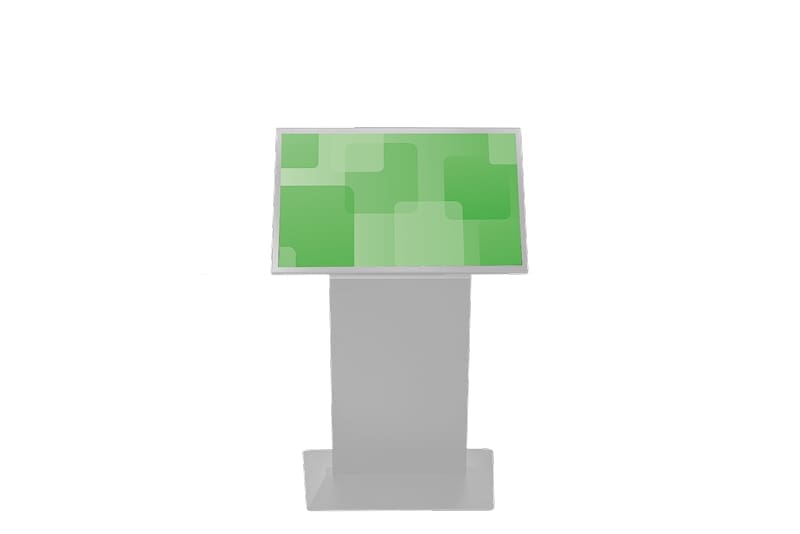

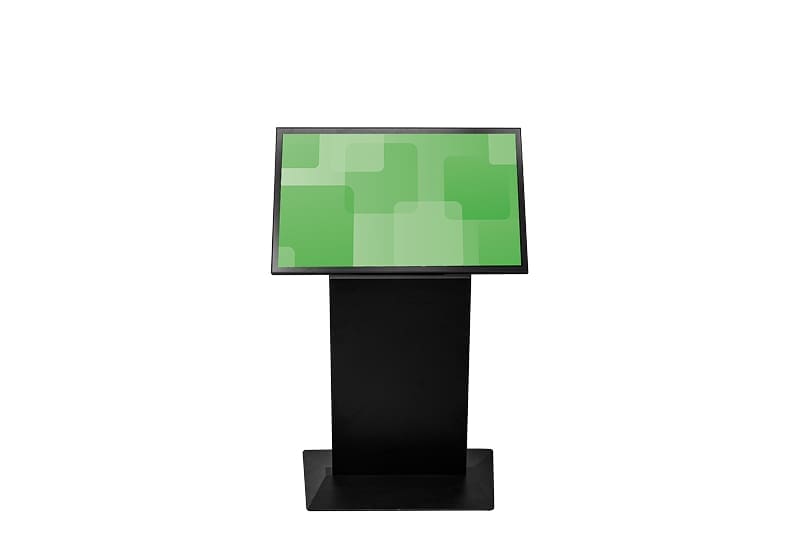

32″ KIOSK

Full HD Industrial LCD-panel with backlight LED A+ quality
Capacitive 10-finger multitouch monitor

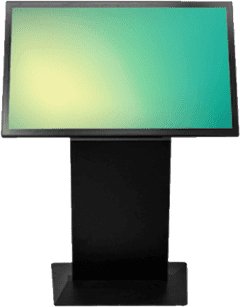

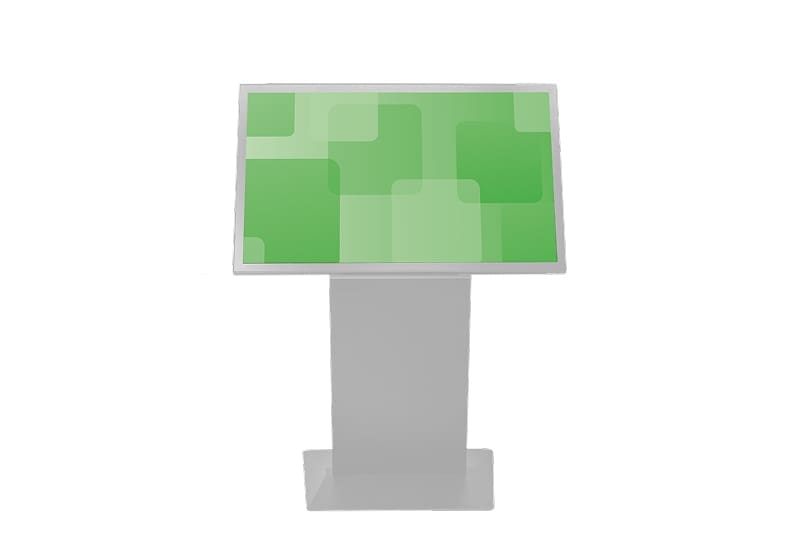

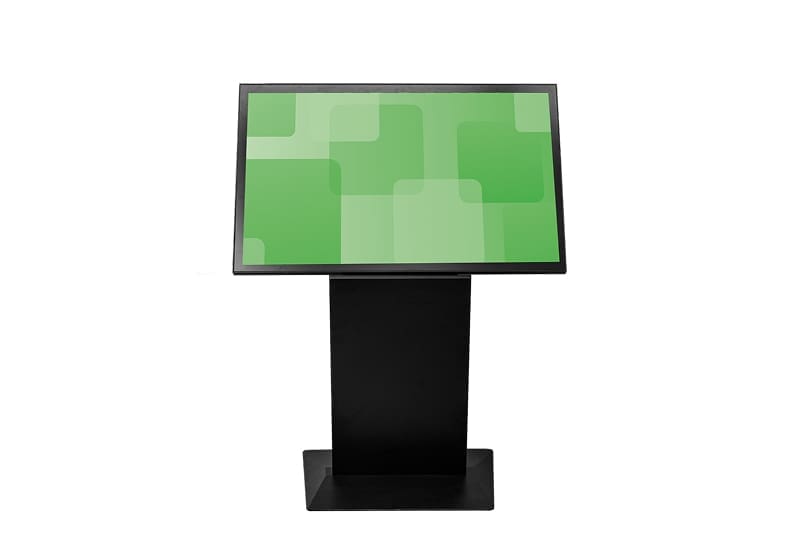

43″ KIOSK

Full HD Industrial LCD-panel with backlight LED A+ quality
Capacitive 10-finger multitouch monitor

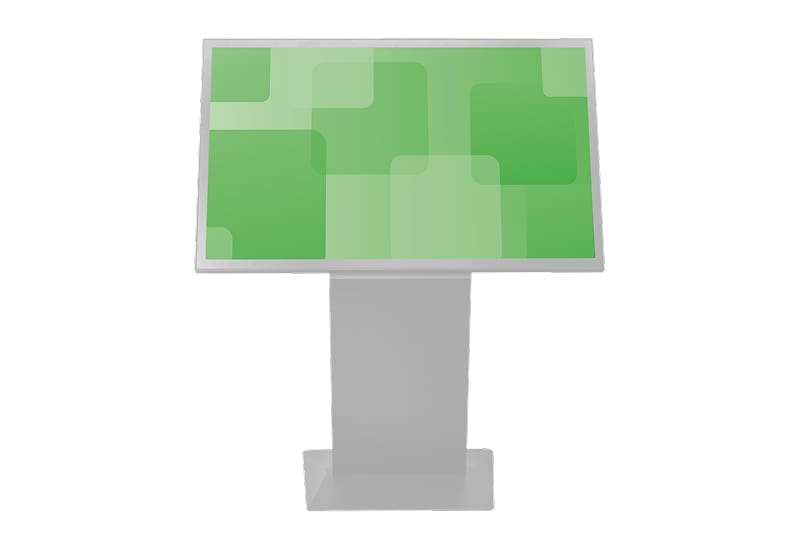

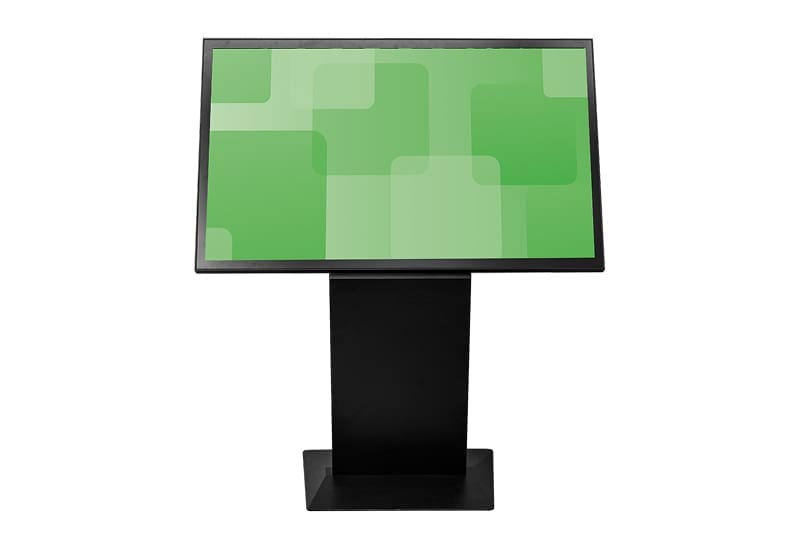

55″ KIOSK

Full HD Industrial LCD-panel with backlight LED A+ quality
Capacitive 10-finger multitouch monitor
External UL certified ACDC power supply

Other formats include A Frame, Landscape, Outdoor, Portrait, UpRight Small Format.

Looking to buy or rent a touch screen kiosk or learn more about our kiosks series?

Contact us now.

SPECIFICATIONS

32″ Kiosk

Product name: 32” Touchscreen Monitor: Landscape/Portrait
Article code / EAN number: FT32TMBCAP / 6920734032105

LCD Panel

IP Rated Front Panel: IP40
Screen diagonal (Inch/cm): 31.5/80.01
Display active screen size: 69.84×39.29
Aspect ratio: 16:9
Physical resolution: 1920×1080
Maximum showable resolution (TPCs: external): 1920×1200 Colours displayed: 16.7M
Brightness (cd/m2): 350
Contrast: 3000:1
Typical reaction time Tr/ Tf (ms): 6/6
Visual Angle horizontal/vertical (°): 178/178
Backlight / Backlight Lifetime (hours): LED / 30,000

Touch Panel

Touch Technology: Projected Capacitive 10-point Multitouch Touch Connector: USB
Touch Panel Drivers: Windows; Linux; Mac; Android
Touch Life (Contacts): Unlimited

Surface Hardness: 7H

Operational/Mechanical:

Operating Temperature (°C): -10 ~ +60 Humidity Range (RH): 10%-90%
Net weight (kg): 16.80
Gross weight (kg): 20

Housing material: Aluminum
Housing (cm) LxWxH: 76.80 x 47.50 x 6.37

Power

Power Indicator: Green LED
Power Supply: 100-240V ACDC active switching; 24V DC-Out Working Power (V): 24
Power Consumption (W):65
Stand-By Consumption (W): <1

External Connectors

Audio: 1x HDMI 1.3 (incl. HDCP) 1x PC-Audio
Touch Connector Connectors: 1x USB

Connectors:1x 24V DC-IN

Video: 1x VGA and 1x DVI-D’

Included Accessories

Power Supply (see Power section) Driver DVD
HDMI Cable
USB Cable

SPECIFICATIONS

43″ Kiosk

Product name: 43” Touchscreen Monitor
Article code / EAN number: FT42TMBCAP / 66920734042104

LCD Panel

IP Rated Front Panel: IP40
Screen diagonal (Inch/cm): 42/106.73
Display active screen size: 93.02×52.33
Aspect ratio: 16:9
Physical resolution: 1920×1080
Maximum showable resolution (TPCs: external): 1920×1200 Colours displayed: 16.7M
Brightness (cd/m2): 360
Contrast: 1400:1
Typical reaction time Tr/ Tf (ms): 6/8
Visual Angle horizontal/vertical (°): 178/178
Backlight / Backlight Lifetime (hours): LED / 50,000

Touch Panel

Touch Technology: Projected Capacitive 10-point Multitouch Touch Connector: USB
Touch Panel Drivers: Windows; Linux; Mac; Android
Touch Life (Contacts): Unlimited

Surface Hardness: 7H

Operational/Mechanical:

Operating Temperature (°C): -10 ~ +60 Humidity Range (RH): 10%-90%
Net weight (kg): 20.50
Gross weight (kg): 100

Housing material: Aluminum
Housing (cm) LxWxH:98.80 x 58.20 x 7.30

Power

Power Indicator: Green LED
Power Supply: 100-240V ACDC active switching; 24V DC-Out Working Power (V): 24
Power Consumption (W):85
Stand-By Consumption (W): <0.5

External Connectors

Audio: 1x PC-Audio and1x Earphone-Out

Touch Connector Connectors: 1x USB

Connectors: 1x 12V DC-IN

Video: 1x VG and 1x DVI-D and 1x HDMI 1.1 (incl. HDCP)

Included Accessories

Power Supply (see Power section) Driver DVD
HDMI Cable
USB Cable

SPECIFICATIONS

55″ Monitor

Product name: 55″ Capacitive Touch Screen Monitor
Article code / EAN number: FTK55J1900W4G64GCAP / 6920734055562

LCD Panel

IP Rated Front Panel: IP40
Screen diagonal (Inch/cm): 55/138.8
Display active screen size: 121.00×68.00
Aspect ratio: 16:9
Physical resolution: 1920×1080
Maximum showable resolution (TPCs: external): 1920×1200 Colours displayed: 16.7M
Brightness (cd/m2): 350
Contrast: 1400:1
Typical reaction time Tr/ Tf (ms): 6/8
Visual Angle horizontal/vertical (°): 178/178
Backlight / Backlight Lifetime (hours): LED / 50,000

Touch Panel

Touch Technology: Projected Capacitive 10-point Multitouch Touch Connector: USB
Touch Panel Drivers: Windows; Linux; Mac; Android
Touch Life (Contacts): Unlimited

Surface Hardness: 7H

Operational/Mechanical:

Operating Temperature (°C): -10 ~ +60

Humidity Range (RH): 10%-90%
Net weight (kg): 75
Gross weight (kg): 100

Housing material: Aluminum
Housing (cm) LxWxH: 126.80 x 74.90 x 6.60

Power

Power Indicator: Green LED
Power Supply: 100-240V ACDC active switching; 24V DC-Out Working Power (V): 24
Power Consumption (W): 125
Stand-By Consumption (W): <1

External Connectors

1x Display port
1x VGA
1x DVI-D
1x HDMI
2x W-LAN connector
1x USB
1x PC-Audio
1x 24V 4-PIN DC-In

Included Accessories

Power Supply (see Power section) Driver DVD
HDMI Cable

USB Cable
